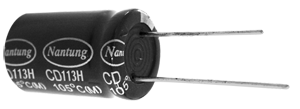

CD113H SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS

  • Load life of 1000 hours at 105oC

  • Wide temperature, Low dissipation factor, High stability

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range (oC) -40~+105
Rated Voltage Range (V) 6.3~100
Nominal capacitance range (uF) 0.1~4700
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (uA) I<=0.02CV or 0.3 whichever is greater  (at 20oC ,after 2minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20oC,120Hz)
Rated Voltage (V) 6.3 10 16 25 35 50~100
D. F. C>1uF 0.20 0.17 0.13 0.10 0.10 0.08
C<=1uF 0.06 0.06 0.06 0.06 0.06 0.06
Temperature Stability(120Hz)
Rated Voltage (V) 6.3 10 16 25 35 50~100
Z-40oC/Z+20oC 8 6 4 4 3 3
Load Life(+105oC)
Time 1000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+105oC)
Time 500 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

         After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                               MM


       Lead spacing and diameter

D +/-0.5 +/-1.0
5 6.3 8 10 12.5 16 18
F+/-0.5 2 2.5 3.5 5 7.5
d+/-0.1 0.5 0.6 0.8
a 0~+2.0

  • STANDARD RATINGS
WV
 6.3 10 16 25 35 50 63 100
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple

Cap

(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.1                     5X11 6
0.15                     5X11 7
0.22                     5X11 8
0.33                     5X11 10
0.47                     5X11 12
0.68                     5X11 14
1                     5X11 17
1.5                     5X11 21     5X11 23
2.2                     5X11 26     6.3X11 30
3.3                     5X11 32 6.3X11 36 6.3X11 36
4.7                 5X11 34 6.3X11 43 6.3X11 43 8X11.5 51
6.8         5X11 36 5X11 41 5X11 41 6.3X11 52 6.3X11 52 10X12.5 73
10         5X11 43 6.3X11 57 6.3X11 57 8X11.5 75 8X11.5 75 10X16 97
15         5X11 53 6.3X11 70 8X11.5 82 8X11.5 92 10X12.5 109 10X20 130
22     5X11 56 6.3X11 74 8X11.5 99 8X11.5 99 10X12.5 131 10X16 144 10X20 158
33     6.3X11 79 6.3X11 90 8X11.5 121 10X12.5 144 10X16 176 10X16 176 10X20 193
47     6.3X11 94 8X11.5 127 10X12.5 172 10X12.5 172 10X16 210 10X20 230 12.5X25 288
68     6.3X11 113 8X11.5 153 10X12.5 207 10X16 227 10X20 277 10X20 277 12.5X25 346
100     8X11.5 160 10X12.5 220 10X16 270 10X20 300 12.5X20 380 12.5X25 420 16X25 488
150 8X11.5 183 10X12.5 236 10X16 296 10X20 368 12.5X20 422 12.5X25 514 12.5X25 514 16X31.5 654
220 10X12.5 260 10X16 310 10X20 390 12.5X20 510 12.5X25 550 16X25 720 16X31.5 792 18X35.5 737
330 10X16 350 10X20 420 12.5X20 550 12.5X25 680 16X25 790 16X31.5 970 16X35.5 1018 18X40 1146
470 10X20 460 12.5X20 570 12.5X20 650 16X25 940 16X25 940 16X35.5 1210 18X35.5 1304
680 10X20 554 12.5X20 786 12.5X25 859 16X31.5 1246 16X31.5 1246 16X35.5 1456 18X35.5 1568
1000 12.5X25 840 12.5X25 910 16X25 1210 16X35.5 1580 16X35.5 1690 18X40 1996
1500 12.5X25 1029 16X25 1297 16X31.5 1623 18X35.5 2083 18X40 2186
2200 16X25 1440 16X31.5 1710 18X35.5 2200 18X40 2648
3300 16X35.5 2037 16X35.5 2209 18X40 2844
4700 18X40 2736 18X40 2968

   Ripple Current: 105 oC ,100Hz or 120Hz

   The specific capacitance and case size are available on request.
