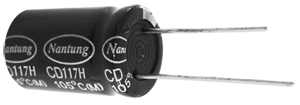

CD117H SERIES

    ALUMINUM ELECTROLYTIC CAPACITORS

  • Load life of 1000 hours at 105o C

  • Wide temperature, High stability, low dissipation factor, Low leakage current, Used in high stability circuits.

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(o C) -40~+105
Rated Voltage Range (V) 10~50
Nominal capacitance range (uF) 0.47~47
Capacitance Tolerance(20o C,120Hz) 20%
Leakage current (uA) I<=0.03CV+3
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20o C,120Hz)
Rated Voltage (V) 10 16 25 50
D.F. 0.10 0.10 0.10 0.08
Load Life(+105o C)
Time 1000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within 20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+105o C)
Time 1000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within 20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

      After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.

  • DIMENSIONS                                MM


Lead spacing and diameter

D +/-0.5 +/-1.0
6.3 8 10 12.5
F+/-0.5 2.5 3.5 5
d+/-0.1 0.5 0.6

a

 0~+2.0


  • STANDARD RATINGS
WV
 10 16 25 50
Size Ripple Size Ripple Size Ripple Size Ripple

Cap(uF)


DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.47 - - - - - - 6.3X11
1 - - - - 6.3X11 - 6.3X11
2.2 - - 6.3X11 - 6.3X11 - 6.3X11
3.3 - - 6.3X11 - 6.3X11 - 6.3X11
4.7 6.3X11 - 6.3X11 - 6.3X11   8X11.5
10 8X11.5 - 8X11.5 - 10X12.5   10X16
22 10X12.5 - 10X12.5   10X16   10X20
33 10X16   10X16   10X20   12.5X20
47 10X20   10X20   12.5X20

      The specific capacitance and case size are available on request.
