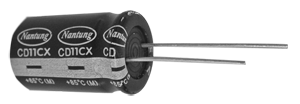

CD11CX SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS

  • Load life of 1000 hours at 85oC

  • 7mm L standard products

  • VTR, video cameras, car radios, micro cassette tape recorder, etc.

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+85
Rated Voltage Range (V) 4~100
Nominal capacitance range(uF) 0.1~470
Capacitance Tolerance(20oC, 120Hz) +/-20%
Leakage Current (uA) I<=0.01CV or 3 whichever is greater.  (at 20oC,after 2 minutes)

C: Nominal Capacitance (uF), V: Rated Voltage (v)
Dissipation Factor(20oC, 120Hz)
Rated voltage (v) 4 6.3 10 16 25 35 50 63 100
D.F. 0.35 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.08
Temperature Stability (120Hz)
Rated voltage (v) 4 6.3 10 16 25 35 50 63 100
Impedance ratio z-25oC/Z+20oC 6 4 3 2
z-40oC/Z+20oC 16 10 8 6 4
Load Life(+85oC)
Time 1000hours.
Leakage current Not more than the specified value
Capacitance change within+/-20% of initial value
Dissipation factor Not more than 200% of the specified value.
Shelf Life (+85oC)
Time 500hours.
Leakage current Not more than the specified value
Capacitance change within+/-20% of initial value
Dissipation factor Not more than 200% of the specified value.

After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                      MM
  • MULTIPLIER FOR RIPPLE CURRENT

Lead spacing and diameter

D+/-0.5 4 5 6.3 8
F+/-0.5 1.5 2.0 2.5 3.5
d+/-0.1 0.45
a 0~+1.0

Frequency coefficient

Freq(Hz) 50,60 120 1K 10K-100K
Rated voltage(v)
4~16 0.80 1 1.1 1.2
25~35 0.80 1 1.5 1.7
50~100 0.80 1 1.6 1.9

Temperature coefficient

Temperature(oC) +70 +85
Coefficient 1.35 1.00
  • STANDARD RATINGS
WV(v)     4 6.3 10 16 25 35 50 63 100
Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple Size
(mm)		 Ripple

Cap

(aF)

DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA) DxL (mA)
0.1 - - - - - - - - - - - - 4x7 4 4x7 4 - -
0.22 - - - - - - - - - - - -
4x7
 5 4x7 6 - -
0.33 - - - - - - - - - - - - 4x7 7 4x7 7 - -
0.47 - - - - - - - - - - - - 4x7 8 4x7 8 - -
1 - - - - - - - - - - - - 4x7 10 4x7 10 4x7 12
2.2 - - - - - - - - - - - - 4x7 15 4x7 15 5x7 20
3.3 - - - - - - - - 4x7 15 4x7 15 4x7 20 4x7 23 6.3x7 30
4.7 - - - - - - - - 4x7 20 4x7 20 4x7 24 5x7 30 6.3x7 35
10 - - - - - - 4x7 35 4x7 30 4x7 30 5x7 40 6.3x7 50 - -
22 - - 4x7 35 4x7 35 4x7 40 5x7 50 5x7 55 6.3x7 70 - - - -
33 4x7 35 4x7 40 4x7 45 5x7 55 6.3x7 70 6.3x7 75 8x7 100 - - - -
47 4x7 40 4x7 50 5x7 60 5x7 70 6.3x7 85 8x7 110 - - - - - -
100 5x7 70 5x7 80 6.3x7 108 6.3x7 120 8x7 145 - - - - - - - -
220 6.3x7 120 6.3x7 140 8x7 185 8x7 205 - - - - - - - - - -
330 8x7 170 8x7 205 - - - - - - - - - - - - - -
470 8x7 197

    Ripple Current: 85 oC, 100Hz or 120Hz
