CD13L
SERIES
ALUMINUM
ELECTROLYTIC CAPACITORS
|

|
| |
-
Load life of 5000 hours at
85oC
-
Size may be selected
-
High ripple current
-
Used for Computers Communication
powers, Hi-ripple
circuit of electric vehicle, electric train, general-purpose
inverter etc.
|
| Item |
Characteristics |
| Operating
Temperature Range(oC) |
-40~+85 |
| Rated
Voltage Range (V) |
350-450 |
|
Nominal capacitance range (uF) |
1000~18000 |
| Capacitance
Tolerance(20oC,120Hz) |
+/-20% |
| Leakage
current (uA) |
I<=0.01CV
or 5mA,whichever is smaller. (at 20oC,after 5 minutes)
C: Nominal capacitance (uF) V: Rated voltage (V) |
| Dissipation
Factor(20oC,120Hz) |
D.F<=0.15 |
| Load
Life(+85oC) |
| Time |
5000hours |
| Leakage
current |
Not
more than the specified value |
| Capacitance
Change |
Within
+/-20% of the initial value |
| Dissipation
Factor |
Not
more than 200% of the specified value |
|
| Shelf
Life(+85oC) |
| Time |
1000hours |
| Leakage
current |
Not
more than the specified value |
| Capacitance
Change |
Within
+/-20% of the initial value |
| Dissipation
Factor |
Not
more than 200% of the specified value |
*After Test: Rated voltage to
be applied for 60 minutes,24 to 48 hours before measurement
|
|
|
- MULTIPLIER
FOR RIPPLE CURRENT
|
|
Lead spacing and diameter
| D |
51 |
64 |
76 |
89 |
| F |
22 |
28 |
32 |
32 |
|
Frequency coefficient
| Frequency(Hz)
|
50,60 |
120 |
300 |
1K |
>=10K |
| Factor |
0.7 |
1.0 |
1.10 |
1.30 |
1.40 |
Temperature coefficient
| Temperature(oC) |
+40 |
+60 |
+85 |
| Factor |
1.89 |
1.67 |
1.0 |
|
|
|
WV |
350 |
400 |
450 |
| Cap(uF) |
|
DxL(mm) |
Ripple (A)
|
DxL(mm) |
Ripple (A) |
DxL(mm) |
Ripple (A) |
| 1000 |
|
|
51X83 |
5.0 |
51X83 |
5.0 |
| 1200 |
51X83 |
5.5 |
51X83 |
5.5 |
51X96 |
6.0 |
| 1500 |
51X83 |
6.1 |
51X96 |
6.7 |
51x115 |
7.2 |
| 1800 |
51X96 |
7.4 |
51X96 |
7.4 |
51X130 |
8.3 |
| 2200 |
51X96 |
8.2 |
51X130 |
9.2 |
64X96 |
9.0 |
| 2700 |
51X130 |
10.2 |
64X96 |
9.9 |
64X115 |
10.7 |
| 3300 |
51X130 |
11.3 |
64X115 |
11.8 |
64X130 |
12.4 |
| 3900 |
64X115 |
12.8 |
64X130 |
13.5 |
64X155 |
14.5 |
|
77X115 |
13.6 |
| 4700 |
64X130 |
14.8 |
64X155 |
15.9 |
64X196 |
17.5 |
| 77X115 |
14.9 |
77X130 |
15.6 |
| 5600 |
64X155 |
17.3 |
64X196 |
19.1 |
77X155 |
18.3 |
|
77X115 |
16.3 |
77X130 |
17.0 |
| 6800 |
64X196 |
21.1 |
77X155 |
20.2 |
90X157 |
21.4 |
|
77X130 |
18.8 |
| 8200 |
77X155 |
22.1 |
90X157 |
23.5 |
90X157 |
23.5 |
| 10000 |
90X157 |
25.9 |
90X157 |
25.9 |
90X196 |
28.3 |
| 12000 |
90X157 |
28.4 |
90X196 |
31.0 |
90X236 |
33.6 |
| 15000 |
90X196 |
34.6 |
90X236 |
37.5 |
|
|
|
|
| 18000 |
90X236 |
41.4 |

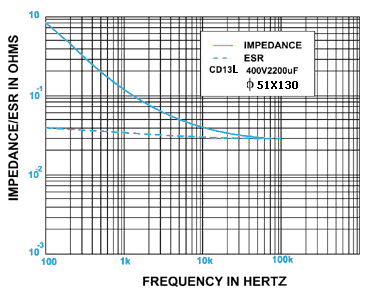

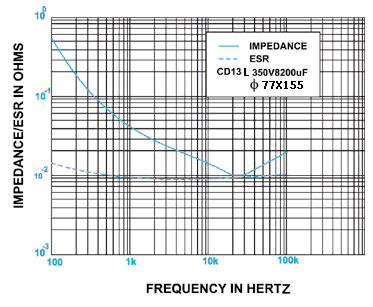

Ripple current:
+85 oC 100Hz or 120Hz
The specific capacitance and case size are available on request.
|
