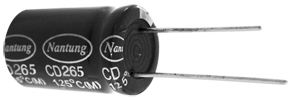

CD265 SERIES

  ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 1000 hours at 125oC
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+125
Rated Voltage Range (V) 10~100
Nominal capacitance range (uF) 0.47~1000
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (uA)

I>=0.02CV or 2uA whichever is greater. (at 20oC, after 2 minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)

Dissipation Factor(20oC,120Hz)
Rated voltage (V) 10 16 25 35 50 63 100
D.F. 0.20 0.17 0.17 0.12 0.10 0.10 0.10
Temperature Stability(120Hz)
Rated Voltage (V) 10 16 25 35 50 63 100
Impedance Ratio Z-25oC/Z+20oC 2 2 2 2 2 2 2
Z-40oC/Z+20oC 8 6 4 4 4 4 3
Load Life(+125oC)
time 1000 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-15% of the initial value.
Dissipation Factor Not more than 150% of the specified value.
Shelf Life(+125oC)



time 500 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-15% of the initial value.
Dissipation Factor Not more than 150% of the specified value.

        After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                                  mm
  • MULTIPLIER FOR RIPPLE CURRENT




D +/-0.5 +/-1.0
8 10 12.5 16
F+/-0.5 3.5 5.0 5.0 7.5
d+/-0.1 0.6 0.6 0.6 0.8
a 0.5 0.5 1.0 1.0

Frequency coefficient

Freq(Hz) 50,60 120 500 1K >=10K

Cap(uF)

0.47~47 0.8 1.0 1.2 1.3 1.5
100~1000 0.8 1.0 1.1 1.15 1.2

  • STANDARD RATINGS
     WV(V) 10 16 25 35 50 63 100
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple
Cap(uF)
DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.47 - - - - - - - - 8x11.5 3.6 - - 8x11.5 4.8
1 - - - - - - - - 8x11.5 9 - - 8x11.5 12
2.2 - - - - - - - - 8x11.5 18 - - 8x11.5 24
3.3 - - - - - - - - 8x11.5 27 8x11.5 30 10x12.5 33
4.7 - - - - - - - - 8x11.5 33 8x11.5 36 10x12.5 39
10 - - - - - - - - 8x11.5 51 8x11.5 54 10x20 57
22 - - - - - - 8x11.5 72 10x12.5 90 10x12.5 96 12.5x25 102
33 - - - - 8x11.5 72 10x12.5 102 10x12.5 114 10x16 126 16x25 150
47 - - 8x11.5 81 8x11.5 87 10x12.5 120 10x16 150 10x20 171 16x25 192
100 8x11.5 105 10x12.5 141 10x16 165 10x20 222 12.5x20 282 12.5x25 306 - -
220 10x16 207 10x20 261 10x20 279 12.5x25 405 16x25 510 16x25 525 - -
330 10x16 252 12.5x20 360 12.5x25 420 16x25 573 16x25 642 - - - -
470 10x20 342 12.5x25 462 16x25 573 16x31.5 762 - - - - - -
1000 16x25 708 16x25 774 - - - - - - - - - -

     Ripple Current: 125 oC, 100Hz or 120Hz

    The specific capacitance and case size are available on request.
