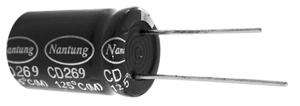

CD269 SERIES

 ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 2000 hours at 125oC

  • Wide temperature, Long life.
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+125
Rated Voltage Range (V) 10~63 100~350
Nominal capacitance range (uF) 47~3300 0.47~100
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (UA)

I>=0.04CV (at 20oC, after 2 minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)

I>=0.02CV+15uA
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20oC,120Hz)
Rated voltage (V) 10 16 25 35 50 63 200~350
D.F. 0.20 0.16 0.14 0.12 0.10 0.09 0.20
Load Life(+125oC)
Time 2000 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+125oC)



Time 500 hours
Leakage Current Not more than the specified value.
Capacitance Change Within +/-20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

        After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                                  mm
  • MULTIPLIER FOR RIPPLE CURRENT




D +/-0.5 +/-1.0
6.3 8 10 12.5 16 18
F+/-0.5 2.5 3.5 5.0 5.0 7.5 7.5
d+/-0.1 0.5 0.6 0.6 0.6 0.8 0.8
a 0.5 0.5 1.0 1.0 1.0 1.0

Frequency coefficient

Freq(Hz) 120 1K 10K 100K
Cap(uF)
0.47~100 0.40 0.75 0.90 1.00
220~330 0.50 0.85 0.95 1.00
470~1000 0.60 0.88 0.96 1.00
2200~3300 0.75 0.90 0.98 1.00

  • STANDARD RATINGS
WV
10 16 25
Size Impedance Ripple/100KHz  Impedance Size Ripple /100KHz Size Impedance Ripple/100KHz

Cap

(uF)


DxL(mm)  Z(Ohm) (mA) Z( Ohm) DxL(mm) (mA) DxL(mm)  Z(Ohm) (mA)
220   8X12 0.33 340 8X15 0.23 480
330 8X12 0.33 340 10X12.5 0.24 500 10X16 0.2 630
470 10X12.5 0.24 500 10X16 0.2 630 10X20 0.12 770
1000 10X20 0.12 770 12.5X20 0.075 920 12.5X25 0.06 1250
2200 12.5X25 0.061 1250 16X25 0.05 1380 - - -
3300 16X25 0.05 1380

WV
35 50 63
Size Impedance Ripple/100KHz  Size Impedance Ripple/100KHz Impedance Size Ripple/100KHz

Cap

(uF)


DxL(mm) Z(Ohmbh)   (mA) DxL(mm)  Z(Ohmbh) (mA) Z( Ohmbh) DxL(mm) (mA)
47             8X12 0.68 245
100 8X12 0.33 340 10X12.5 0.36 420 10X16 0.38 425
220 10X16 0.2 630 10X20 0.20 655 12.5X20 0.18 665
330 10X20 0.12 770 12.5X20 0.12 780 12.5X25 0.14 900
470 12.5X20 0.075 920 12.5X25 0.10 1060
1000 16X25 0.05 1380

  V(V) 100 200 250 350
Size Ripple/100Hz Size Ripple/100Hz Size Ripple/100Hz Size Ripple/100Hz
Cap(uF)
DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.47 5x11 8 6.3x11 8 6.3X11 8
1     6.3x11 12 6.3X11 12 8X11.5 12
2.2     6.3x11 16 8X11.5 20 10X12.5 24
3.3     8x11.5 28 10X16 28 10X16 28
4.7     10X16 40 10X16 32 10X16 36
10     12.5X20 60 12.5X20 60 12.5X20 60
22     12.5X20 96 12.5X25 112 12.5X25 112
33     16X20 152 16X25 136 16X31.5 160
47     16X20 176 18X35.5 192 18X35.5 208
100     18X31.5 244 - - - -

    Ripple Current: 125oC; Impedance: 20oC, 100KHz

    The specific capacitance and case size are available on request.

  How to order   - part numbering system
