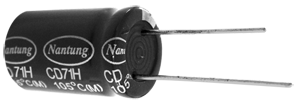

CD71H SERIES

  ALUMINUM ELECTROLYTIC CAPACITORS



  • Load life of 1000 hours at 105oC

  • Bi-polarized, Wide temperature
  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+105
Rated Voltage Range (V) 6.3~100
Nominal capacitance range (uF) 0.47~6800
Capacitance Tolerance(20oC,100Hz) +/-20%
Leakage Current (uA) I<=0.06CV or 10 whichever is greater.  (at 20oC ,after 2 minutes)
C: Nominal Capacitance (uF) V: Rated Voltage (V)
Dissipation Factor(20oC,120Hz)
Rated Voltage (v) 6.3 10 16 25 35 50 63 100
D.F. 0.24 0.24 0.20 0.20 0.16 0.14 0.12 0.10
Temperature Stability(120Hz)
Rated Voltage (v) 6.3 10 16 25 35 50 63 100
Impedance Ratio Z-25oC/Z+20oC 4 3 2
Z-40oC/Z+20oC 10 8 6 4 3
Load Life(+105oC)
Time 1000 hours. (Polarity inverts for every 250 hours)
Leakage Current Not more than the specified value.
Capacitance Change within +/-20% of the initial value.
Dissipation Factor Not more than 150% of the specified value.
Shelf Life(+105oC)
Time 500 hours.
Leakage Current Not more than the specified value.
Capacitance Change within +/-20% of the initial value.
Dissipation Factor Not more than 150% of the specified value.

After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.


  • DIMENSIONS                            MM

D

+/-0.5

+/-1.0

5

6.3

8

10

12.5

16

18

F+/-0.5

2

2.5

3.5

5

7.5

d+/-0.1

0.5

0.6

0.8

a

0~+2.0
  • STANDARD RATINGS
WV  6.3 10 16 25 35 50 63 100
Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple Size Ripple

Cap

(uF)
DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA) DxL(mm) (mA)
0.47 - - - - - - - - - - 5x11 7 - - 5x11 8
1 - - - - - - - - - - 5x11 10 - - 5x11 12
2.2 - - - - - - - - - - 5x11 15 - - 5x11 20
3.3 - - - - - - - - - - 5x11 18 5x11 20 6.3x11 25
4.7 - - - - - - - - 5x11 21 5x11 22 6.3x11 24 6.3x11 30
10 - - - - 5x11 27 5x11 27 5x11 30 6.3x11 37 6.3x11 40 8x11.5 50
22 - - 5x11 37 5x11 40 6.3x11 46 6.3x11 51 8x11.5 63 8x11.5 68 10x16 97
33 5x11 45 5x11 45 5x11 49 6.3x11 56 8x11.5 72 8x11.5 77 10x12.5 98 12.5x20 140
47 5x11 54 5x11 54 6.3x11 67 6.3x11 67 8x11.5 86 10x12.5 105 10x16 130 12.5x20 170
100 6.3x11 90 6.3x11 90 8x11.5 110 8x11.5 110 10x12.5 160 10x20 190 12.5x20 225 16x25 300
220 8x11.5 150 8x11.5 150 10x12.5 195 10x16 215 10x20 290 12.5x25 340 16x25 405 18x35.5 510
330 8x11.5 185 10x16 240 10x16 265 12.5x20 320 12.5x25 350 16x25 460 16x31.5 535 - -
470 10x12.5 260 10x16 290 10x20 345 12.5x20 380 16x25 465 16x31.5 590 18x35.5 680 - -
1000 10x20 460 12.5x20 510 12.5x25 605 16x25 670 16x31.5 805 - - - - - -
2200 12.5x25 820 16x25 910 16x31.5 1070 18x35.5 1140 - - - - - - - -
3300 16x25 1110 16x31.5 1200 18x35.5 1400 - - - - - - - - - -
4700 16x31.5 1430 18x35.5 1520 - - - - - - - - - - - -
6800 18x35.5 1830 - - - - - - - - - - - - - -

Ripple Current: 85oC ,100Hz or 120Hz

The specific capacitance and case size are available on request.
