CD95 SERIES

   ALUMINUM ELECTROLYTIC CAPACITORS

  • Load life of 2000 hours at 85

  • Axial type

  • For general consumer electronic products application

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -40~+85
Rated Voltage Range (V) 6.3~160
Nominal capacitance range (uF) 0.47~10000
Capacitance Tolerance(20%,120Hz) +/-20%
Leakage current (μA)
Rated Voltage (V) CV<=1000 CV>1000
  I≤0.05CV or 5 whichever is greater. I≤0.03CV+20

C: Nominal capacitance (μF) V: Rated voltage (V)

Dissipation Factor(20℃,120Hz)
Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160
D.F. 0.3~0.5 0.3~0.5 0.2~0.4 0.15~0.4 0.15~0.3 0.15~0.3 0.1~0.3 0.1~0.2 0.1~0.2
Temperature Stability(120Hz)
Rated Voltage (V) 6.3 6.3~16 25~63 100~160
Impedance Ratio Z-25℃/Z+20℃ - - - 4
Z-40℃/Z+20℃ 7 5 4 -
Load Life(+85℃)
Time 2000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within 20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.
Shelf Life(+85℃)
Time 1000 hours.
Leakage Current Not more than the specified value.
Capacitance Change Within 20% of the initial value.
Dissipation Factor Not more than 200% of the specified value.

                      After test: Rated voltage to be applied for 30 minutes, 24 to 48 hours before measurement.

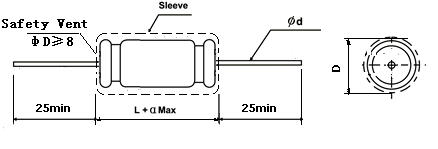

  • DIMENSIONS                              MM
  • MULTIPLIER FOR RIPPLE CURRENT

Diameter

D +/-0.5 +/-1.0
5 6 8 10 12 16,19,22
d+/-0.1
0.5 or 0.6  0.6 or 0.8 0.8 or 1.0
a
 +-2.0(L<=45)

+-3.0(L>45)


  • STANDARD RATINGS
WV 6.3 10 16 25 35 50 63 100 160
Size Size Size Size Size Size Size Size Size

Cap

(uF)
ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm) ΦDxL(mm)
0.47 　- - - 5X12 - 5X12 - 5X12 6X16
1 - - - 5X12 - 5X12 5X12 5X12 6X16
1.5 - - - 5X12 - 5X12 5X12 5X12 6X16
2.2 - - - 5X12 - 5X12 5X12 5X12 6X16
3.3 - - - 5X12 - 5X12 5X12 6X12 8X16
4.7 - - - 5X12 5X12 5X12 5X12 6X12 8X16
6.8 - - 5X12 5X12 5X12 5X12 6X12 8X16 10X16
10 - - 5X12 5X12 5X12 5X16 6X12 8X16 10X16
15 - 5X12 5X12 5X12 6X12 6X16 6X16 10X16 10X20
22 - 5X12 5X12 5X12 6X12 6X16 6X16 10X16 12X25
33 5X12 5X12 5X12 6X12 6X16 8X16 8X16 10X16 12X25
47 5X12 5X12 6X12 6X16 8X16 8X16 8X20 10X25 12X30
68 5X12 6X16 6X16 6X16 8X20 10X16 10X16 12X25 16X35
100 6X12 6X16 6X16 8X16 8X20 10X16 10X20 12X25 16X35
150 6X16 8X16 8X16 10X16 10X16 10X25 12X25 16X35 19X40
220 6X16 8X16 8X20 10X16 10X20 10X25 12X25 16X35 19X40
330 8x16 8X20 10X16 10X20 10X25 12X30 12X30 19X35 -
470 10x16 10X16 10X16 10X20 12X25 12X30 16X30 22X30 -
680 10X16 10X16 12X25 12X25 16X30 16X35 19X35 22X40 -
1000 10x20 10X20 12X25 12X25 16X30 16X35 19X35 - -
1500 12X25 12X25 12X30 16X30 19X30 19X40 22X40 - -
2200 12x25 12X25 12X30 19X35 19X30 22X40 22X50 - -
3300 12x35 12X30 16X35 19X35 22X40 22X50 22X50 - -
4700 12X35 16X35 19X35 19X35 22X40 22X50 - - -
6800 19X35 16X35 22X35 22X40 - - - - -
10000 19X35 19X40 22X35 22X50 - - - - -

     The specific capacitance and case size are available on request.
