CDVZ SERIES

   ALUMINUM ELECTROLYTIC CAPACITORS

  • For high density surface mounting, 105℃,1000hours guaranteed.

  • Carrier taping supplied.

  • Low impedance

  • Reflow soldering is available

  • SPECIFICATIONS
Item Characteristics
Operating Temperature Range(oC) -55~+105
Rated Voltage Range (V) 6.3~35
Nominal capacitance range (uF) 1~220
Capacitance Tolerance(20oC,120Hz) +/-20%
Leakage current (uA) I≤0.01CV or 3 whichever is greater (at 20oC, after 2 minutes)



C: Nominal capacitance (uF) V: Rated voltage (V)

Dissipation Factor(20oC,120Hz)
Rated voltage (v) 6.3 10 16 25 35
D.F. 0.22 0.19 0.16 0.14 0.12
Low Temperature Stability(120Hz)
Rated voltage v) 6.3 10 16 25 35
Impedance ratio Z-25oC/Z+20oC 2 2 2 2 2
Z-40oC/Z+20oC 4 4 3 3 3
Load Life(+105oC)
Time 1000hours
Leakage current Not more than the specified value
Capacitance change within ±20% of the initial value(≤16V : within ±25% of the initial value)
Dissipation factor Not more than 300% of the specified value
Shelf Life(+105oC)

        After storage for 1000 hours at +105℃, Rated voltage to be applied for 30 minutes, the capacitors shall meet the requirement of load life above
Resistance to Soldering Heat

The capacitors shall be kept on the hot plate maintained at 250℃ for 30 seconds. After removing from the hot plate and restored at room temperature, they meet the following requirement.

Leakage current Not more than the specified value
Capacitance change within ±10% of the initial value
Dissipation factor Not more than the specified value

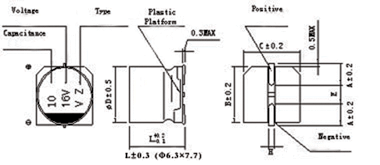

  • DIMENSIONS                              MM
  • MULTIPLIER FOR RIPPLE CURRENT







Lead spacing and diameter

  4x5.4 5x5.4 6.3x5.4 6.3x7.7
  A 1.8 2.1 2.4 2.4
B 4.3 5.3 6.6 6.6
C 4.3 5.3 6.6 6.6
E 1.0 1.3 2.2 2.2
L 5.4 5.4 5.4 7.7
H 0.5~0.8

Frequency coefficient

Freq (Hz)

50

120

300

1K

≥ 10K

 Coefficient

0.64

0.5

0.64

0.83

1.00





  • STANDARD RATINGS
WV 6.3 10 16 25 35
Size Impedance Ripple Size Impedance Ripple Size Impedance Ripple Size Impedance Ripple Size Impedance Ripple
Cap (uF)
DxL(mm) Ω (mA) DxL(mm) Ω (mA) DxL(mm) Ω (mA) DxL(mm) Ω (mA) DxL(mm) Ω (mA)
1.0 - -  -   -    - -  - - -  - 4X5.4 5.0 50

1.5

-

 -

-

-

 -

-

-

 -

-

-

 -

-

4X5.4

 5.0 50

2.2

-

 -

-

-

 -

-

-

 -

-

   -  - 4X5.4 5.0 50
3.3 -  -  -  -  -  -  -  -  -  -  -  -  4X5.4 5.0 50
4.7 -  -  -  -  -  -  -  -  -  4×5.4 5.0 50 4X5.4 5.0 50
6.8 -  -  -  -  -  -  -  -  -  4×5.4 5.0 50 5×5.4 2.6 80
10 -  -  -  -  -  -

4×5.4

 5.0 50 5×5.4 2.6 80 5×5.4 2.6 80
15 -  -  -  -  -  -  5×5.4 2.6 80 6.3×5.4 1.3 115

6.3×5.4

 1.3 115

22

4×5.4

5.0

50

5×5.4

 2.6

80

 5×5.4 2.6 80

6.3×5.4

 1.3

115

6.3×5.4

 1.3 115
33 5×5.4 2.6 80

5×5.4

 2.6 80 6.3×5.4 1.3 115 6.3×5.4 1.3 115 6.3×7.7 0.8 150
47 5×5.4 2.6 80 6.3×5.4 1.3 115

6.3×5.4

 1.3 115 6.3×7.7 0.8 150 6.3×7.7 0.8 150
68 6.3×5.4 1.3 115 6.3×5.4 1.3 115 6.3×7.7 0.8 150 6.3×7.7 0.8 150 -  -  -

100

6.3×5.4

 1.3 115

6.3×7.7

 0.8

150

6.3×7.7

 0.8 150 -  -  -

-

 -

-
150 6.3×7.7 0.8 150 6.3×7.7 0.8 150 -  -  -  -  -  -  -  -  -

220

6.3×7.7

 0.8 150 - -  -  -  -

-

-

 -

-

-



-

          Ripple Current: 105℃, 120Hz; Low impedance : 20℃ 100KHz

The specific capacitance and case size are available on request.
